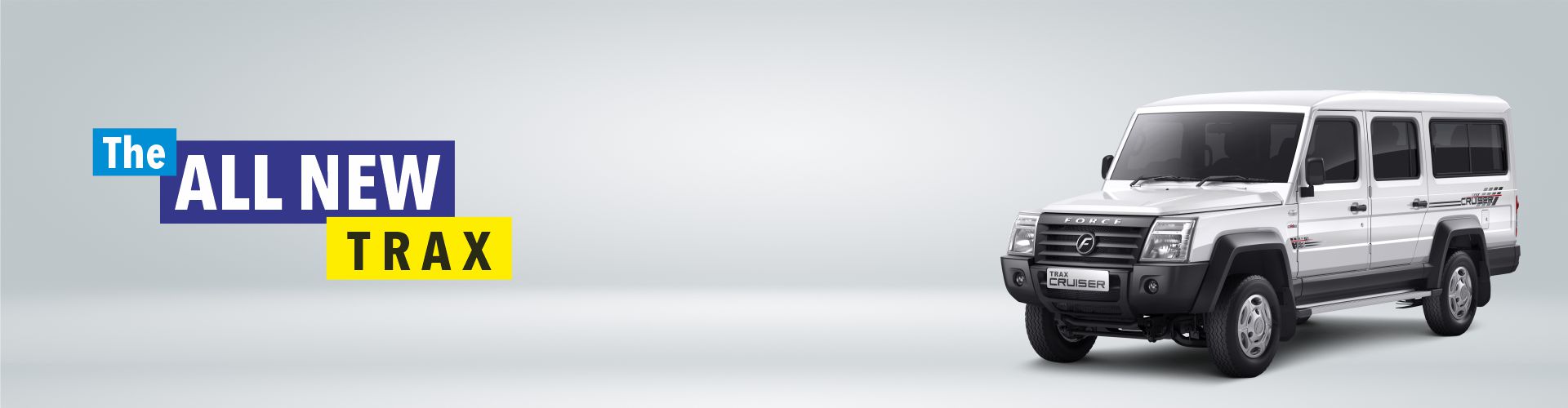

TRAX DV
SALIENT FEATURES
Mercedes Derived FM 2.6 CR BS6 Engine and All New Transmission
All New C-in-C Chassis for Excellent Bending Strength and Torsional Rigidity
All New Suspension for Excellent Ride Comfort
SEATING LAYOUT: 2+D
ABS and EBD For Best in Class Safety
REGISTER YOUR VEHICLE ENQUIRY HERE
We shall get back
TECHNICAL SPECIFICATIONS
ENGINE | |
Engine | FM 2.6 CR ED |
Emission | BS-VI Stage 2 |
Type | 4 Cylinder, Common Rail , DI TCIC |
Displacement | 2596 cc |
Max Output | 67kW (90hp) @ 3200rpm |
Max Torque | 250Nm @ 1400-2400 rpm |
TRANSMISSION | |
Type | Manual, Synchromesh |
Model | G28/5B |
No. of Gears | 5 Forward +1Reverse |
AXLES | |
Front | Independent |
Rear | Live Rigid |
SUSPENSION | |
Front | Independent Type, Double Wishbone,Torsion Bar With Anti Roll Bar |
Rear | Leaf Spring type with shock absorber & anti roll bar |
STEERING | |
Type | Power steering - Rack & Pinion |
Turning Radius | 6.1 m |
BRAKES | |
Service Brakes | Dual circuit, hydraulic,vacuum assisted with auto wear adjuster |
Front | Disc |
Rear | Drum |
Parking | Mechanical acting on rear wheel |
WARRANTY | |
Warranty | 3 years / 3 lakh km* with 6 free services * T&C apply |
WHEELS & TYRES | |
Size | 215 / 75 R15 LT |
Tyre Type | Radial / Tubeless |
BRAKES | |
Service Brakes | Dual circuit, hydraulic,vacuum assisted with auto wear adjuster |
Front | Disc |
Rear | Drum |
Parking | Mechanical acting on rear wheel |
CARGO BOX | |
Cargo Box ( L x W x H ) | 2240 x 1470 x 1230 |
Cargo Vol.(m3) | 2.1 m3 |
Ground Clearance (mm) | 191 |
WEIGHT (kg) | |
Maximum FAW | 1205 |
Maximum RAW | 1795 |
Maximum GVW | 2900 |
Rated Payload | 995 |
CAPACITY | |
Fuel Tank | 63.5 Litres/AdBlue |
SEATING CAPACITY | |
Seating Capacity | 2+D |
